Product characteristics：

BRTBO8WDS1PO model is suitable for 12-250T horizontal injection molding machine finished products and water nozzle extraction, the upper and lower arm structure is double-cut, double arms, suitable for two/three plate mold extraction, transverse AC servo motor drive, accurate positioning, fast speed, long life, low fault, The installation of the manipulator can increase the production capacity (10-30%), reduce the defect rate of the product, ensure the safety of the operator, reduce the manual precision control of production, reduce waste, and ensure delivery.

Huacheng single axis drive and control integrated control system: less signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high repeated positioning accuracy, can control multiple axes at the same time, simple equipment maintenance, less failure rate.

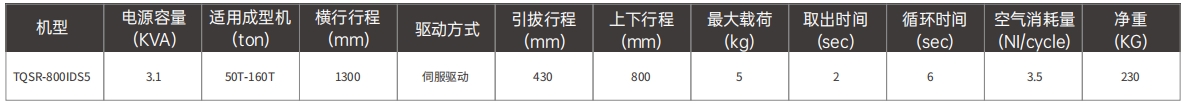

Main specification：

Model description :W: double-cut D: double-arm manipulator (finished arm + material head arm) S1: transverse AC servo motor drive

The above pick-up time and cycle time are the test results of our internal testing standards, which will vary in the actual application process of the machine due to the actual use of travel, load and debugging parameters。
