Product characteristics：

BRTN22WSS5PC series is suitable for 1300-2200T various types of plastic injection molding machine, five-axis AC drive, standard AC drive shaft, A-axis rotation Angle 360C-axis rotation 180 can be freely positioned and adjusted fixture Angle, long life, high accuracy, low failure rate, simple maintenance, It is mainly used for fast removal or complex Angle removal applications, especially long shape products such as automotive products, washing machines and home appliances.

Huacheng five-drive integrated control system: less signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high repeated positioning accuracy, can control multiple axes at the same time, simple equipment maintenance, less failure rate.

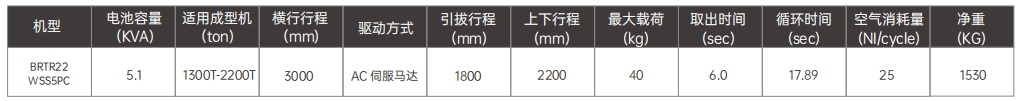

Main specifications:

 Model description :W: Double-cut S: single-arm manipulator (finished arm) S5: Five-axis AC servo motor drive (finished arm/material head arm up and down, drawing + horizontal) The above fetching time and cycle time are the test results of our internal testing standards, which will vary in the actual application process of the machine due to the actual use of travel, load and debugging parameters.
